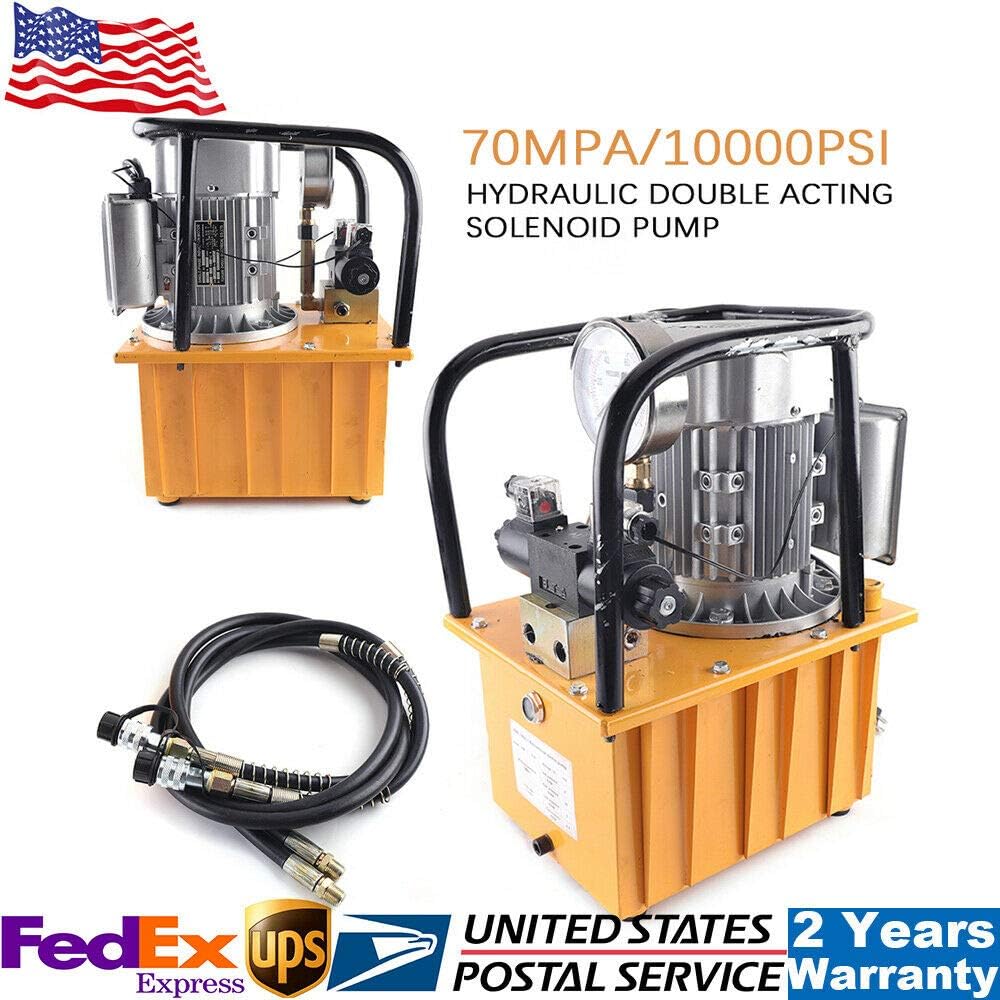

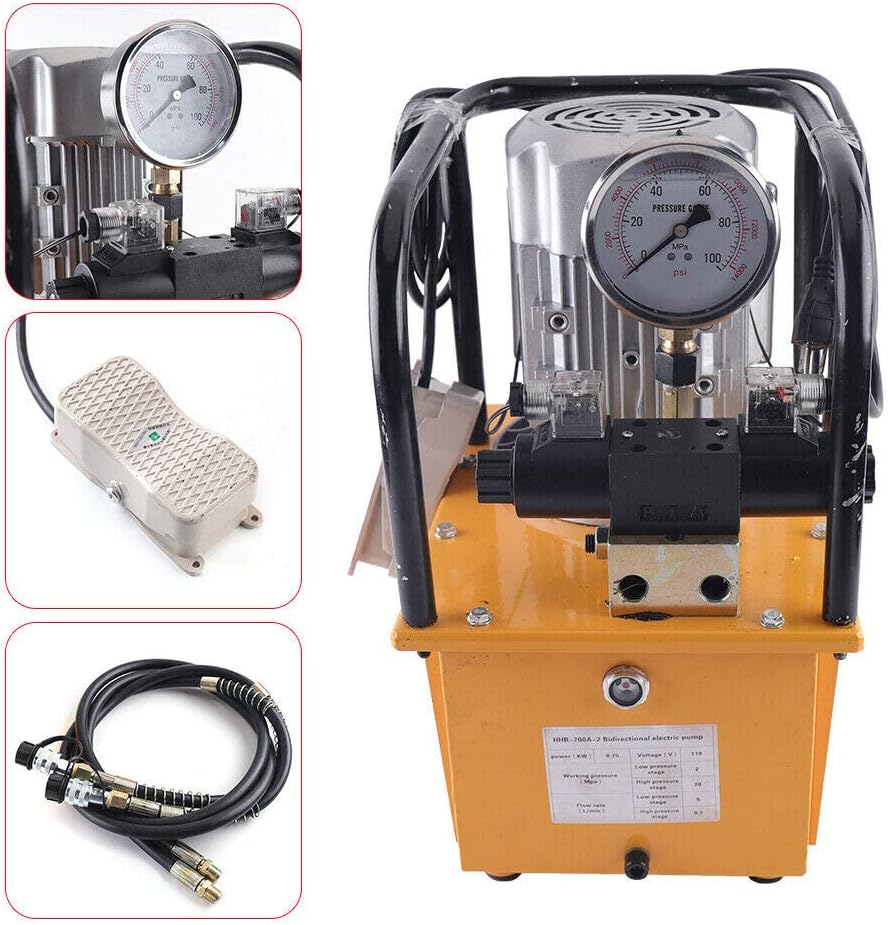

Electric Hydraulic Pump 10152 PSI Hydraulic Electric Pump 750W 7L Manual Valve Hydraulic Power Pack Cylinder Hydrafore Pump 110V

Appication: 1. The pump can be used for a variety of hydraulic equipments. 2. If the pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly. Reduce manual work and maximize work efficiency. 3.Punching machine, bending machine, Jack split hydraulic products Specifications: Input voltage: AC 110V 60HZ Flow rate: 0.6L/min(＞7Mpa) - 5L/min(＜7Mpa) Working pressure: 290PSI - 10152PSI(2Mpa - 70Mpa) Oil capacity: 7L Motor power: 750W Motor speed: 1400r/Min G.W: 30KG Operation Instruction: 1. Open the filler before use, the electric pump and power connections before oiling, then press down the black button which next to the motor to open, press the manual operation switch (up), after a few air pressure, press the manual operation switch (down), turn off the motor, connected to tubing. (The pressure should not exceed 63Mpa when air pressure, in order to avoid damage) 2. Open the motor after the pump connect with the equipment, and placed the operation valve in pressurized position after the motor rotates 1-2 minutes, this moment the hydraulic oil come into the cylinder to perform the work, and the output of the hydraulic oil will increases with the load on their own booster until 63Mpa. 3. The oil pump regular working temperature between 10℃~50℃,when find the oil temperature≥70 ℃ should stop using after continuous working under high pressure, let it self-cooling before use. 4. The pressure of the relief valve and safety valve have been set before the pump leave the factory, the user can not arbitrarily increase the pressure,could only reduce it according to the actual working pressure, that can improve the life of the pump station. Package included: 1 X Electric Driven Hydraulic Pump 2 X Oil Hose(1.8M) 2 X Quick Connector

• 【Double Acting】- Double acting is more convenient and quick, more applicable.
• 【Large Tank】- Can be loaded with up to 7L oil, large fuel tank capacity, electric hydraulic pump is faster and less laborious.
• 【High Rotating Speed】- 1400 r/min high working efficiency, complete more work in less time.Reduce manual work and maximize work efficiency.
• 【Low Power】- 750 watt motor is more energy efficient, powerful, wide range of applications.

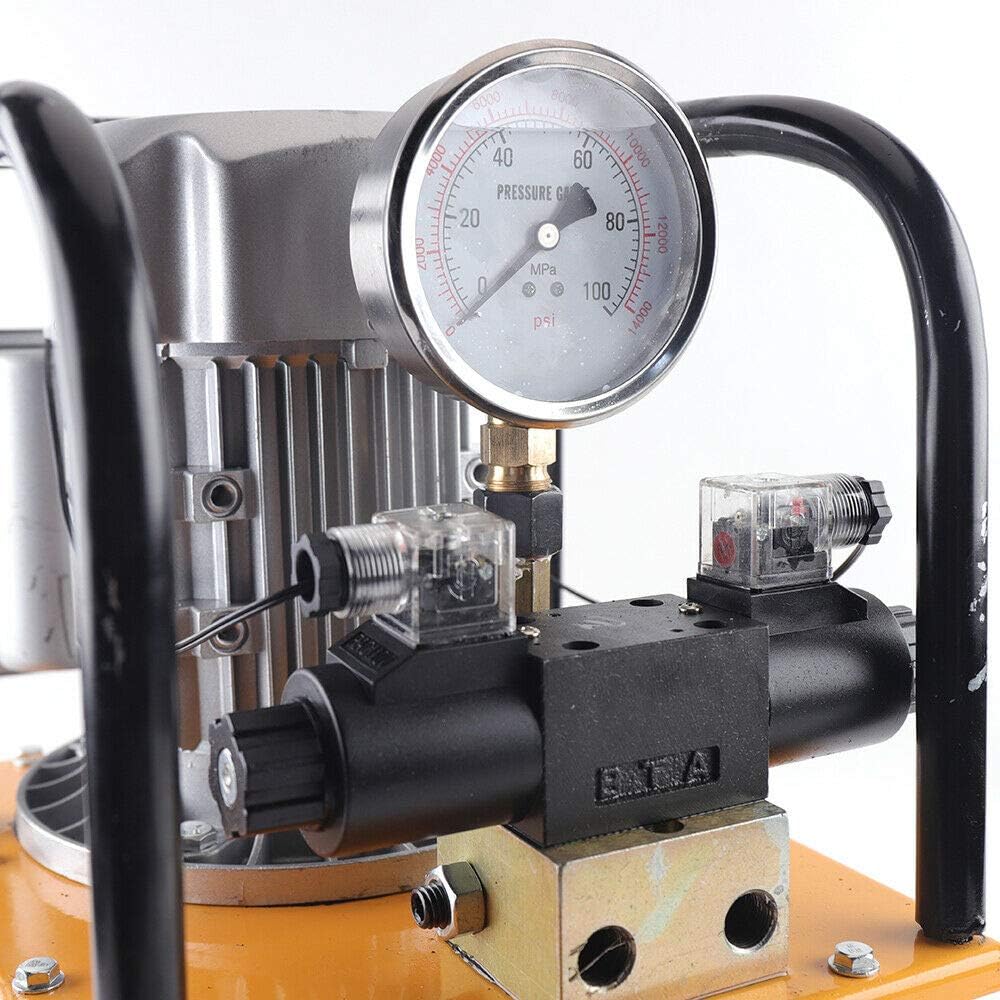

• 【Working Pressure】- From 7Mpa to 70Mpa, you can try slowly and choose the right working pressure you need.Working mode：Pedal Solenoid valve Control
